Ceramic Tile Anti-static Raised Floor
Base Material
Main Material: High-quality Q235 grade cold-rolled steel plate, ensuring structural strength and durability.
Layer Details: Top plate thickness 0.6-0.7mm, bottom plate thickness 0.5-0.6mm, filled with high-density foamed cement for better load-bearing and sound insulation.
Surface Treatment: Phosphating and anti-static plastic spraying process, effectively preventing rust and corrosion, and enhancing the service life of the floor.
Decoration Surface
Surface Material: High-grade anti-static ceramic tile surface, high hardness and wear resistance.
Key Features: Scratch-resistant, easy to clean, non-slip, and the surface is not easy to fade after long-term use.
Fire Rating: Class A1 (non-combustible), fully complying with national and international fire safety standards.
Anti-static Performance: Surface resistance ranges from 1.0×10⁶ to 1.0×10⁹Ω, with stable and durable anti-static effect, effectively releasing static electricity.
Support Structure
Bracket: All-steel adjustable bracket, with adjustable height ranging from 100mm to 300mm, suitable for different raised height requirements.
Bracket Material: Q235 cold-rolled steel, treated with hot-dip galvanizing to improve rust and corrosion resistance.
Base Design: Large-diameter non-slip base, enhancing the stability of the bracket and preventing tilting.
Cross Beam: Galvanized steel square tube cross beam, firmly connected with the bracket to form a stable grid, ensuring uniform load distribution.
Assembly
Installation Method: Modular assembly, simple and efficient, no special complex tools required.
Pre-installation Preparation: Level the ground (flatness ≤2mm/㎡) and lay grounding copper strips to ensure the anti-static effect.
Installation Steps: First install the brackets, then assemble the cross beams, lay the floor tiles, and finally adjust the levelness to ensure the overall flatness of the floor.
Maintenance Advantage: Easy to disassemble and replace single floor tile, reducing maintenance cost and improving maintenance efficiency.

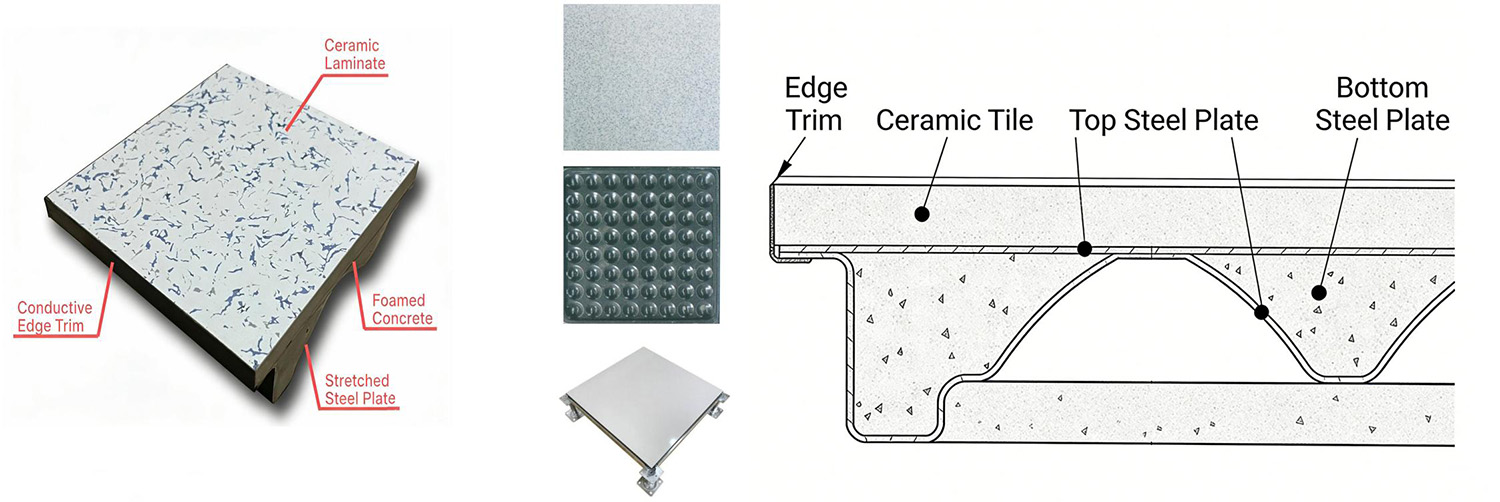

Material Structure Description
Product Parameters
| Type | International | Size (mm) | Fire Performance | concentrated load - lb | concentrated load - N | concentrated load - KG | Impact Load | Ultimate limit Load | Uniform Load | Rolling Load - 10Times | Rolling Load - 10000Times |
| TD-1301 | FS700 | 600×600×40 | A | ≥700 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2950 | 2270 |
| TD-1302 | FS800 | 600×600×40 | A | ≥800 | ≥3550 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| TD-1303 | FS1000 | 600×600×40 | A | ≥1000 | ≥4450 | ≥453 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| TD-1304 | FS1250 | 600×600×40 | A | ≥1250 | ≥5560 | ≥567 | ≥725 | ≥16680 | ≥33000 | 5560 | 4450 |
| TD-1305 | FS1500 | 600×600×40 | A | ≥1500 | ≥6660 | ≥680 | ≥780 | ≥16680 | ≥43000 | 6670 | 5560 |
