Calcium Sulfate Anti-static Floor
Base Material
Core Material: High‑density calcium sulphate composite panel (natural gypsum powder reinforced with non‑toxic plant fiber, formed by pulse pressing), density 1500–1700kg/m³, formaldehyde‑free & Class A non‑combustible.
Bottom Cover: 0.4–0.5mm galvanized steel sheet, moisture‑proof, anti‑corrosive & enhances structural strength.
Standard Specification: 600×600×32mm (35mm heavy‑duty type optional), high dimensional accuracy & interchangeability.
Edge Treatment: 2.0–2.5mm conductive PVC strips embedded around, sealing against moisture & ensuring overall anti‑static conductivity.
Decoration Surface
Standard Finish: Imported high‑wear‑resistant anti‑static HPL laminate (melamine fireproof board), surface resistance 10⁶–10⁹Ω, wear‑resistant, stain‑resistant & easy to clean.
Optional Finishes: Conductive anti‑static PVC veneer, ceramic tile, square carpet, suitable for data centers, offices & cleanrooms.
Surface Properties: Soft light, anti‑slip, fireproof, moisture‑proof, sound insulation (NRC ≥ 0.7) & comfortable underfoot.
Edge Sealing: PVC injection molding for edge protection, preventing wear & improving integrity & sealing.
Support Structure
Supports: All‑steel adjustable pedestals (galvanized/electrostatic sprayed), height adjustable 100–300mm (customizable to 1000mm+), verticality deviation ≤ 1‰.
Stringers: Steel square tube stringers (25×25×1.2mm), bolted to pedestals to form grid frames, enhancing lateral resistance & overall stability.
Accessories: Pedestals with rubber shock‑absorbing pads to reduce vibration & noise; fixed with special M6 screws between stringers & panels for robust structure.
Load Capacity: 32mm standard — concentrated load ≥ 3530N (360kg), uniform load ≥ 16180N/m² (1650kg/m²); 35mm heavy‑duty — concentrated load ≥ 4410N (450kg), uniform load ≥ 23040N/m² (2350kg/m²).
Assembly
Subfloor Preparation: Clean & level the ground; mark layout with laser level, pedestal spacing ≤ 600mm (≤ 400mm in heavy‑load areas).
Pedestal Installation: Fix adjustable pedestals, level uniformly, install bottom shock‑absorbing pads to ensure horizontal & vertical accuracy.
Stringer Assembly: Bolt steel stringers to pedestals to form regular grid frames; check diagonal deviation (≤ 3mm per 10m).
Panel Installation: Embed calcium sulphate anti‑static panels into stringer grids, fix with edge clips & special screws to ensure flat splicing.
Commissioning & Cabling: Adjust floor flatness, route power & data cables in the raised space, complete installation & acceptance.

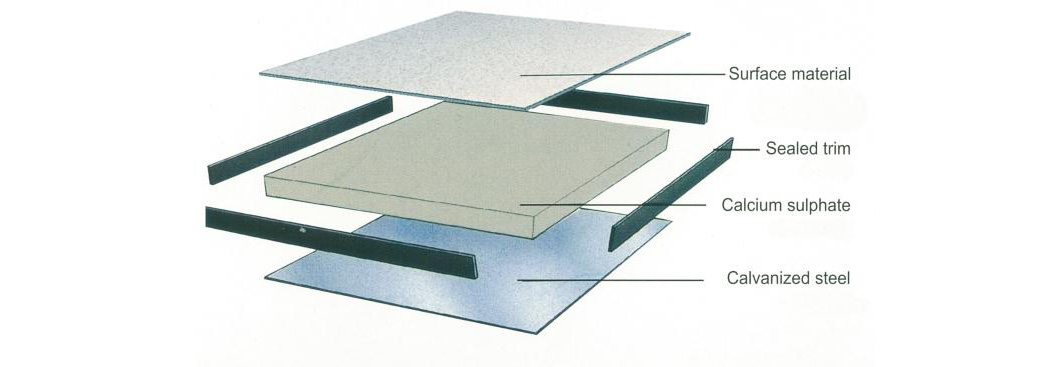

Material Structure Description
Product Parameters
| Type | International | Size (mm) | Fire Performance | concentrated load - lb | concentrated load - N | concentrated load - KG | Impact Load | Ultimate limit Load | Uniform Load | Rolling Load - 10Times | Rolling Load - 10000Times |
| TD-1501 | FS800 | 600×600×32 | A | ≥800 | ≥3550 | ≥363 | ≥536 | ≥10680 | ≥16100 | 3560 | 2670 |
| TD-1502 | FS1000 | 600×600×32 | A | ≥1000 | ≥4450 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| TD-1503 | FS1250 | 600×600×40 | A | ≥1250 | ≥5560 | ≥567 | ≥725 | ≥16680 | ≥33000 | 5560 | 4450 |
| TD-1504 | FS1500 | 600×600×40 | A | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
