All-Steel OA Network Raised Floor
Base Material
Top Panel: SPCC high‑quality cold‑rolled hard steel plate (Baosteel material), thickness ≥ 0.7mm.
Bottom Panel: ST14 stretched steel plate, thickness ≥ 0.7mm.
Core Infill: Lightweight foamed cement, enhancing structural strength, sound insulation and fire resistance.
Overall Process: Steel plates are formed by stamping, stretching and spot welding; surface treated with phosphating and electrostatic spraying for anti‑corrosion.
Specification: Standard 500×500×28mm, with corner lock holes at four corners for easy fixing and assembly.
Decoration Surface
Standard Finish: Imported high‑wear‑resistant melamine fireproof board (HPL), wear‑resistant, anti‑static, anti‑pollution and easy to clean.
Optional Finishes: PVC anti‑static veneer, square carpet, suitable for different office scenarios and decoration styles.
Edge Treatment: Conductive strips embedded around to ensure overall anti‑static performance and beautiful splicing.
Surface Properties: Soft light, waterproof, fireproof, dustproof, meeting the requirements of modern office and computer room environments.
Support Structure
Supports: All‑steel adjustable supports, anti‑corrosive with galvanizing/electrostatic spraying; height adjustable from 35–200mm to adapt to different raised heights.
Stringers: Steel square tube stringers, bolted to supports to form a stable frame, improving overall lateral resistance and load‑bearing capacity.
Accessories: Supports equipped with shock‑absorbing pads at the bottom to reduce vibration and noise; fixed with special screws between stringers, supports and floor panels for stable structure.
Load Capacity: Concentrated load ≥ 2950N, uniform load ≥ 12500N/m², ultimate load ≥ 8850N, meeting heavy‑load requirements of offices and computer rooms.
Assembly
Base Preparation: Clean the ground to ensure flatness and no debris; mark support installation positions.
Support Installation: Install adjustable supports according to the layout, adjust to a uniform height, and fix shock‑absorbing pads.
Stringer Assembly: Connect steel stringers to supports with bolts to form a square grid frame, ensuring levelness and squareness.
Floor Panel Installation: Embed all‑steel OA floor panels into the stringer grid, and fix them to supports/stringers with screws through corner lock holes at four corners.
Cabling & Commissioning: Arrange power and data cables in the raised space; adjust floor flatness to complete overall installation.

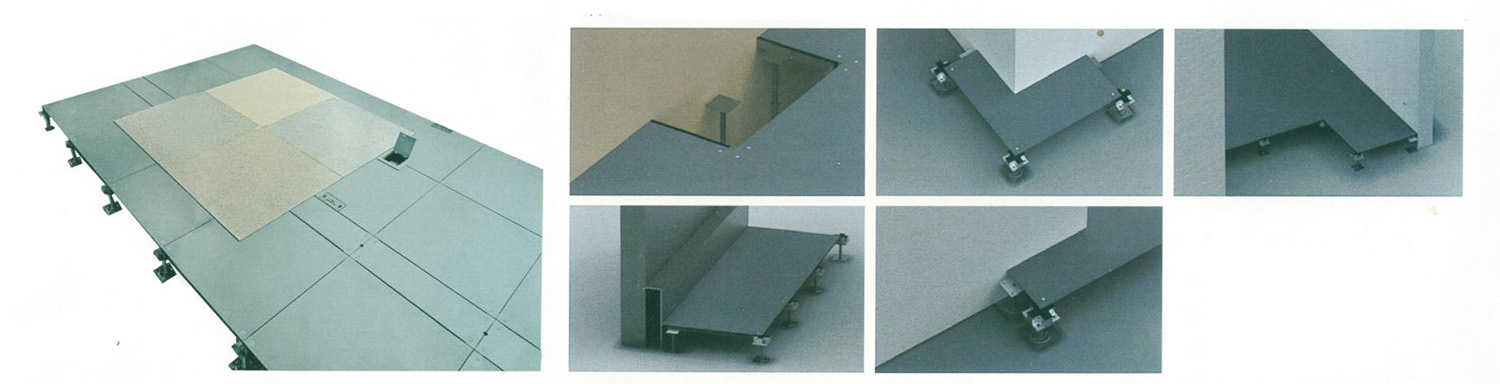

Material Structure Description
Product Parameters
| Type | International | Size (mm) | Fire Performance | concentrated load - lb | concentrated load - N | concentrated load - KG | Impact Load | Ultimate limit Load | Uniform Load | Rolling Load - 10Times | Rolling Load - 10000Times |
| TD-1101 | FS440 | 600×600×33 | A | ≥440 | ≥1960 | ≥200 | ≥295 | ≥5880 | ≥9720 | 1958 | 1566 |
| TD-1102 | FS660 | 600×600×33 | A | ≥660 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥12500 | 2946 | 2356 |
| TD-1103 | FS800 | 600×600×33 | A | ≥800 | ≥3550 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| TD-1104 | FS1000 | 600×600×33 | A | ≥1000 | ≥4450 | ≥453 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| TD-1105 | FS1250 | 600×600×33 | A | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
